概述
C++编译器是保证虚函数表的指针存在于对象实例中最前面的位置(是为了保证取到虚函数表的最高的性能),这样我们就能通过已经实例化的对象的地址得到这张虚函数表,再遍历其中的函数指针,并调用相应的函数。
NOTE:
1、这段话的内容是和 wikipedia Virtual method table的内容相矛盾的:
Many compilers place the virtual table pointer as the last member of the object; other compilers place it as the first; portable source code works either way.[2] For example, g++ previously placed the pointer at the end of the object.[3]
需要注意的几点: (1)同一个类的对象共享一个虚函数表。
(2)如果类存在虚函数表(有虚函数),那么这个类地址的起始位存放**虚函数表的地址**。
(3)子类继承父类虚函数表中的虚函数地址数据,不是同一张表,如果在子类中重写继承的虚函数,会覆盖虚函数表中相应的函数地址。
以上证明见下面分析:
Visual调试分析
(1)创建一个基类
class person
{
public:
virtual void work();
virtual void eat();
virtual void money();
void sleep(); //只是声明静态成员,函数存放在代码段,并不占用这个类的空间
private:
int id=2;
};
输入指令,此指令可以查看person类的内存分配
cl /d1 reportSingleClassLayoutperson test.cpp
Memory layout

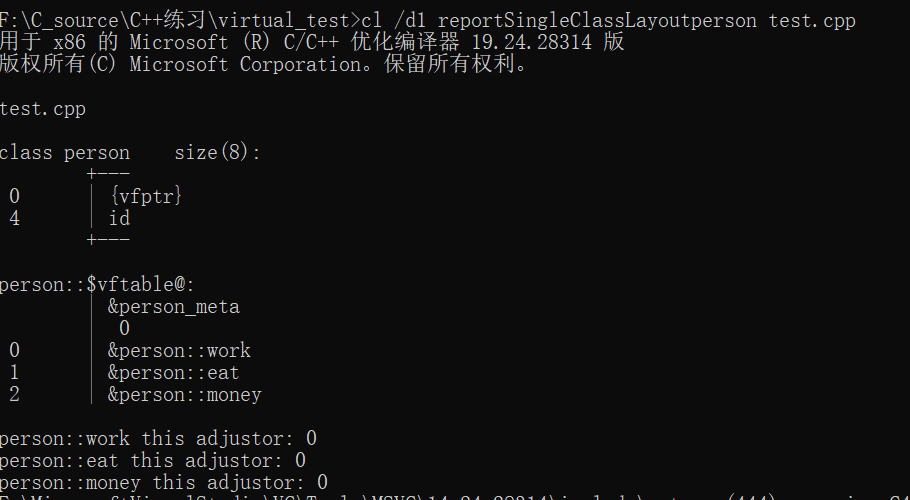

测试结果:
可以看出person
类有一个虚函数表指针vfptr
,指向的虚函数表vftable中有我们定义好的3个虚函数,注意每个虚函数函数前面加了作用域person::
。

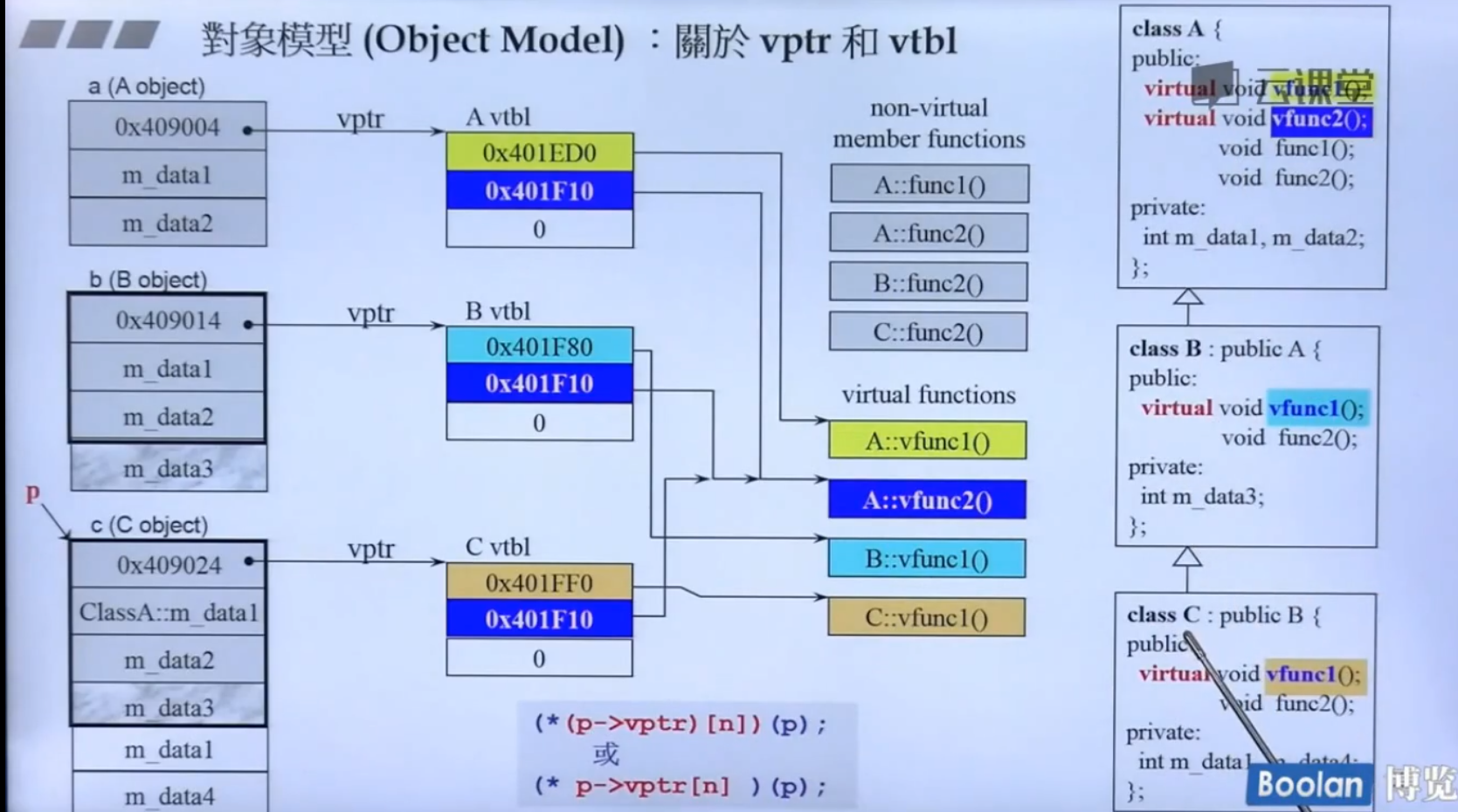

直观图

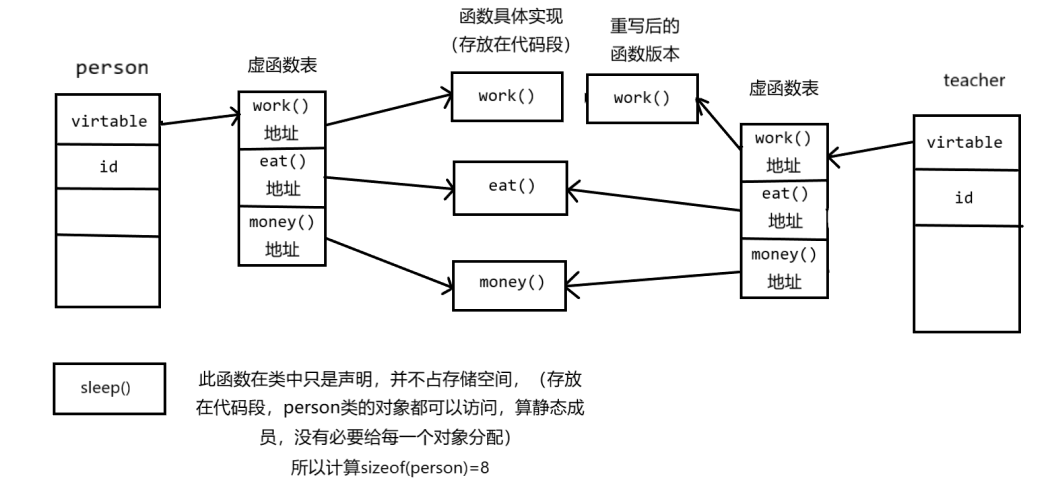

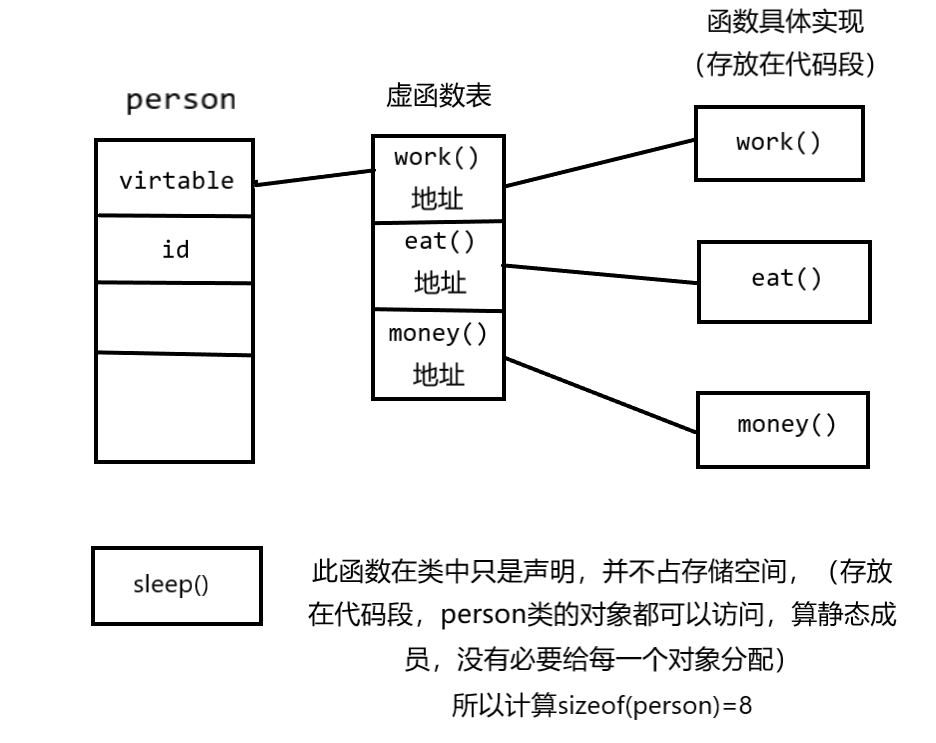

直观的关系如图所示:
(2)再创建一个子类teacher,重写了work虚函数
class teacher :public person
{
public:
virtual void work();
};
输入指令查看teacher子类内存分配
cl /d1 reportSingleClassLayoutteacher test.cpp

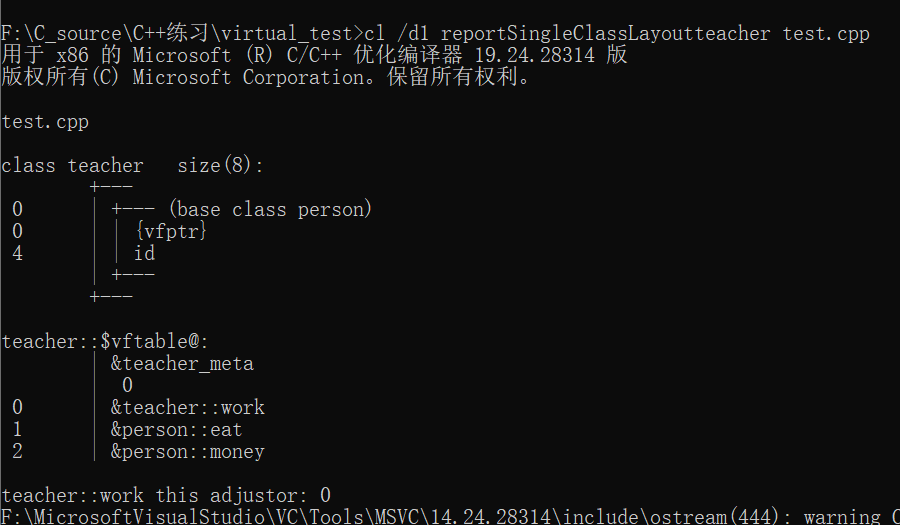

测试结果:
如图,
子类继承了父类的id和虚函数表的函数指针数据(注意,并不是和父类同一个虚函数表,见下面代码测试),因为重写了work函数,work函数前面作用域变为了teacher::
。
多态实现原理
此处可以理解虚函数多态的底层实现原理。
虚函数多态条件:
(1)指针调用
(2)向上转型
(3)存在虚函数
teacher t;
person* p=&t
p->work(); //因为加了虚函数,此处发生多态,即在运行期决定调用哪个函数。
ps:父类指针可以指向子类对象,因为子类对象中必定含有父类的数据信息,反之需要强制转型(有风险)。
p->work()
被编译器转为person::work( p )
,p
指向的teacher
类对象的地址当作传入参数,作为调用哪个函数的依据。
程序运行到此处时先去查找p
指向的虚函数表,此处会带一个偏移量x
,在虚函数表中偏移x
位找到函数地址,如果这个函数没有被重写,那么函数指针地址为&person::work
,此处我们重写了虚函数work
,所以查找到的地址为&teaher::work
。
(3)创建一个无重写函数子类
class student :public person
{
public:
void stufunc();
};

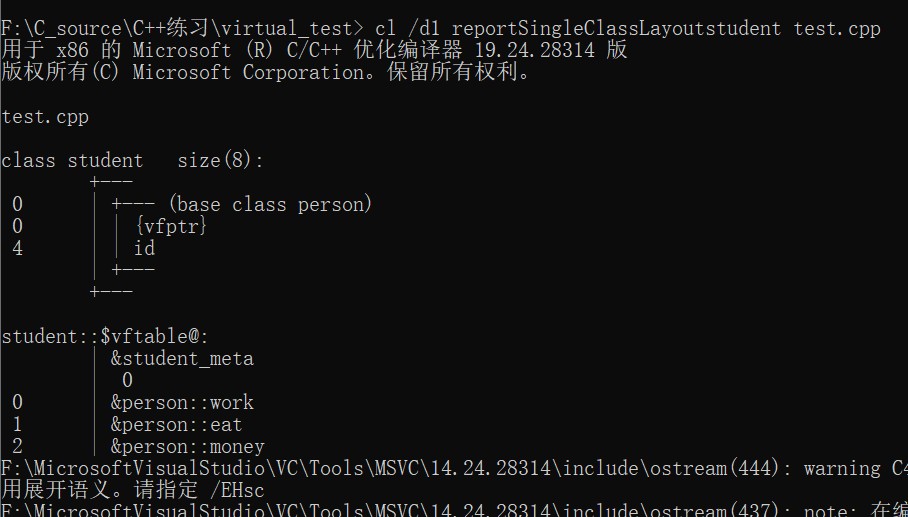

子类正常继承父类虚函数表函数指针地址。
代码测试
原文的代码(存在错误)
#include<iostream>
using namespace std;
class person
{
public:
person(int n = 0)
{
id = n;
}
;
virtual void work();
virtual void eat();
virtual void money();
void sleep(); //只是声明静态成员,函数存放在代码段,并不占用这个类的空间
private:
int id = 2;
};
void person::money()
{
cout << "person_money" << endl;
}
void person::sleep()
{
std::cout << "person_sleep" << std::endl;
}
void person::work()
{
std::cout << "person_work" << std::endl;
}
void person::eat()
{
std::cout << "person_eat" << std::endl;
}
class teacher: public person
{
public:
virtual void work();
};
void teacher::work()
{
cout << "teacher_work" << endl;
}
class student: public person
{
public:
void stufunc();
};
void student::stufunc()
{
cout << "student func" << endl;
}
int main()
{
person p1;
int *person_addr = (int*) &p1;
cout << "基类对象地址" << person_addr << endl;
int *virTableptr = (int*) *(person_addr + 0); //对象地址最开始一位指向虚函数表
cout << "虚函数表地址:" << virTableptr << endl;
/*虚函数表中每一位存有函数指针,即函数入口地址*/
int *func1 = (int*) *(virTableptr + 0); //虚函数指针强转为int* ,方便显示
void (*func1_ac)() = (void(*)()) func1; //可执行函数指针
int *func2 = (int*) *(virTableptr + 1);
void (*func2_ac)() = (void(*)()) func2;
int *func3 = (int*) *(virTableptr + 2);
void (*func3_ac)() = (void(*)()) func3;
cout << "person_func:" << endl;
cout << "work_addr:" << func1 << endl; //打印函数地址
func1_ac(); //函数执行
cout << "eat_addr:" << func2 << endl;
func2_ac();
cout << "money_addr:" << func3 << endl;
func3_ac();
/*下面测试teacher类*/
cout << endl;
cout << "---------------------------" << endl;
cout << "覆盖虚函数子类teacher测试" << endl;
cout << "---------------------------" << endl;
teacher p2;
int *teacher_addr = (int*) &p2;
cout << "子类teacher对象地址" << teacher_addr << endl;
int *teacher_virTable = (int*) *(teacher_addr + 0);
cout << "子类teacher虚函数表地址" << teacher_virTable << endl;
cout << "teacher func" << endl;
int *tfunc1 = (int*) *(teacher_virTable + 0);
void (*tfunc1_ac)() = (void(*)())tfunc1;
cout << "teacher_work_addr:" << tfunc1 << endl;
tfunc1_ac();
int *tfunc2 = (int*) *(teacher_virTable + 1);
void (*tfunc2_ac)() = (void(*)())tfunc2;
cout << "teacher_eat_addr:" << tfunc2 << endl;
tfunc2_ac();
int *tfunc3 = (int*) *(teacher_virTable + 2);
void (*tfunc3_ac)() = (void(*)())tfunc3;
cout << "teacher_money_addr:" << tfunc3 << endl;
tfunc3_ac();
/*测试student类*/
cout << endl;
cout << "---------------------------" << endl;
cout << "未覆盖虚函数子类student测试" << endl;
cout << "---------------------------" << endl;
student p3;
int *stu_addr = (int*) &p3;
cout << "子类student对象地址:" << stu_addr << endl;
int *stu_virtable = (int*) *(stu_addr + 0);
cout << "子类student虚函数表地址:" << stu_virtable << endl;
/*测试person同类*/
cout << endl;
cout << "---------------------------" << endl;
cout << "同类person对象测试" << endl;
cout << "---------------------------" << endl;
person p4;
int *p4_addr = (int*) &p4;
cout << "同类person对象地址:" << p4_addr << endl;
int *p4_virtable = (int*) *(p4_addr + 0);
cout << "同类person虚函数表地址:" << p4_virtable << endl;
return 0;
}
// g++ -Wall -pedantic test.cpp -g
Object memory layout
Vtable for person
person::_ZTV6person: 5u entries
0 (int (*)(...))0
8 (int (*)(...))(& _ZTI6person)
16 (int (*)(...))person::work
24 (int (*)(...))person::eat
32 (int (*)(...))person::money
Class person
size=16 align=8
base size=12 base align=8
person (0x0x7fa63290b4e0) 0
vptr=((& person::_ZTV6person) + 16u)
Vtable for teacher
teacher::_ZTV7teacher: 5u entries
0 (int (*)(...))0
8 (int (*)(...))(& _ZTI7teacher)
16 (int (*)(...))teacher::work
24 (int (*)(...))person::eat
32 (int (*)(...))person::money
Class teacher
size=16 align=8
base size=12 base align=8
teacher (0x0x7fa632900138) 0
vptr=((& teacher::_ZTV7teacher) + 16u)
person (0x0x7fa63290b540) 0
primary-for teacher (0x0x7fa632900138)
Vtable for student
student::_ZTV7student: 5u entries
0 (int (*)(...))0
8 (int (*)(...))(& _ZTI7student)
16 (int (*)(...))person::work
24 (int (*)(...))person::eat
32 (int (*)(...))person::money
Class student
size=16 align=8
base size=12 base align=8
student (0x0x7fa6329001a0) 0
vptr=((& student::_ZTV7student) + 16u)
person (0x0x7fa63290b5a0) 0
primary-for student (0x0x7fa6329001a0)
错误原因分析
上述code在64位系统上运行时,会core dump:
Core was generated by `./a.out'.
Program terminated with signal 11, Segmentation fault.
#0 0x0000000000000000 in ?? ()
Missing separate debuginfos, use: debuginfo-install glibc-2.17-222.el7.x86_64 libgcc-4.8.5-28.el7.x86_64 libstdc++-4.8.5-28.el7.x86_64
(gdb) where
#0 0x0000000000000000 in ?? ()
#1 0x0000000000400b28 in main () at test.cpp:81
(gdb)
1、看到了"signal 11, Segmentation fault",我的第一反应是使用了无效的地址,于是
(gdb) b test.cpp:81
Breakpoint 1 at 0x400b22: file test.cpp, line 81.
(gdb) r
Starting program: /home/dengkai/a.out
基类对象地址0x7fffffffe240
虚函数表地址:0x4012f0
person_func:
work_addr:0x400932
person_work
eat_addr:0
Breakpoint 1, main () at test.cpp:81
81 func2_ac();
Missing separate debuginfos, use: debuginfo-install glibc-2.17-222.el7.x86_64 libgcc-4.8.5-28.el7.x86_64 libstdc++-4.8.5-28.el7.x86_64
(gdb) p func2_ac
$1 = (void (*)(void)) 0x0
(gdb)
果然,func2
的值为0x0
无效值。
2、为什么是0x0
呢?此时我头脑中想起了在 shaharmike C++ vtables - Part 1 - Basics 中输出的vtable的binary memory layout:
(gdb) x/300xb 0x400b40
0x400b40 <vtable for Derived>: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x400b48 <vtable for Derived+8>: 0x90 0x0b 0x40 0x00 0x00 0x00 0x00 0x00
0x400b50 <vtable for Derived+16>: 0x80 0x0a 0x40 0x00 0x00 0x00 0x00 0x00
0x400b58 <vtable for Derived+24>: 0x90 0x0a 0x40 0x00 0x00 0x00 0x00 0x00
0x400b60 <typeinfo name for Derived>: 0x37 0x44 0x65 0x72 0x69 0x76 0x65 0x64
0x400b68 <typeinfo name for Derived+8>: 0x00 0x36 0x50 0x61 0x72 0x65 0x6e 0x74
0x400b70 <typeinfo name for Parent+7>: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x400b78 <typeinfo for Parent>: 0x90 0x20 0x60 0x00 0x00 0x00 0x00 0x00
0x400b80 <typeinfo for Parent+8>: 0x69 0x0b 0x40 0x00 0x00 0x00 0x00 0x00
0x400b88: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x400b90 <typeinfo for Derived>: 0x10 0x22 0x60 0x00 0x00 0x00 0x00 0x00
0x400b98 <typeinfo for Derived+8>: 0x60 0x0b 0x40 0x00 0x00 0x00 0x00 0x00
0x400ba0 <typeinfo for Derived+16>: 0x78 0x0b 0x40 0x00 0x00 0x00 0x00 0x00
0x400ba8 <vtable for Parent>: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x400bb0 <vtable for Parent+8>: 0x78 0x0b 0x40 0x00 0x00 0x00 0x00 0x00
0x400bb8 <vtable for Parent+16>: 0xa0 0x0a 0x40 0x00 0x00 0x00 0x00 0x00
0x400bc0 <vtable for Parent+24>: 0x90 0x0a 0x40 0x00 0x00 0x00 0x00 0x00
可以看到,vtable的每条记录的最后几条的值都是0x00
,那会不会是因为正好读到了最后4byte呢?
3、vtable中,保存的是地址,也就是vtable的类型是pointer,一般在64-bit CPU中,pointer type的length是64-bit、32-bit CPU中,pointer type的length是32-bit,而我的CPU是64-bit的,而原文程序中使用的是int*
,int的length是32-bit,这就导致了前面的直觉: 正好读到了最后4byte。
正确程序
#include<iostream>
using namespace std;
class person
{
public:
person(int n = 0)
{
id = n;
}
;
virtual void work();
virtual void eat();
virtual void money();
void sleep(); //只是声明静态成员,函数存放在代码段,并不占用这个类的空间
private:
int id = 2;
};
void person::money()
{
cout << "person_money" << endl;
}
void person::sleep()
{
std::cout << "person_sleep" << std::endl;
}
void person::work()
{
std::cout << "person_work" << std::endl;
}
void person::eat()
{
std::cout << "person_eat" << std::endl;
}
class teacher: public person
{
public:
virtual void work();
};
void teacher::work()
{
cout << "teacher_work" << endl;
}
class student: public person
{
public:
void stufunc();
};
void student::stufunc()
{
cout << "student func" << endl;
}
int main()
{
person p1;
long *person_addr = (long*) &p1;
cout << "基类对象地址" << person_addr << endl;
long *virTableptr = (long*) *(person_addr + 0); //对象地址最开始一位指向虚函数表
cout << "虚函数表地址:" << virTableptr << endl;
/*虚函数表中每一位存有函数指针,即函数入口地址*/
long *func1 = (long*) *(virTableptr + 0); //虚函数指针强转为long* ,方便显示
void (*func1_ac)() = (void(*)()) func1; //可执行函数指针
long *func2 = (long*) *(virTableptr + 1);
void (*func2_ac)() = (void(*)()) func2;
long *func3 = (long*) *(virTableptr + 2);
void (*func3_ac)() = (void(*)()) func3;
cout << "person_func:" << endl;
cout << "work_addr:" << func1 << endl; //打印函数地址
func1_ac(); //函数执行
cout << "eat_addr:" << func2 << endl;
func2_ac();
cout << "money_addr:" << func3 << endl;
func3_ac();
/*下面测试teacher类*/
cout << endl;
cout << "---------------------------" << endl;
cout << "覆盖虚函数子类teacher测试" << endl;
cout << "---------------------------" << endl;
teacher p2;
long *teacher_addr = (long*) &p2;
cout << "子类teacher对象地址" << teacher_addr << endl;
long *teacher_virTable = (long*) *(teacher_addr + 0);
cout << "子类teacher虚函数表地址" << teacher_virTable << endl;
cout << "teacher func" << endl;
long *tfunc1 = (long*) *(teacher_virTable + 0);
void (*tfunc1_ac)() = (void(*)())tfunc1;
cout << "teacher_work_addr:" << tfunc1 << endl;
tfunc1_ac();
long *tfunc2 = (long*) *(teacher_virTable + 1);
void (*tfunc2_ac)() = (void(*)())tfunc2;
cout << "teacher_eat_addr:" << tfunc2 << endl;
tfunc2_ac();
long *tfunc3 = (long*) *(teacher_virTable + 2);
void (*tfunc3_ac)() = (void(*)())tfunc3;
cout << "teacher_money_addr:" << tfunc3 << endl;
tfunc3_ac();
/*测试student类*/
cout << endl;
cout << "---------------------------" << endl;
cout << "未覆盖虚函数子类student测试" << endl;
cout << "---------------------------" << endl;
student p3;
long *stu_addr = (long*) &p3;
cout << "子类student对象地址:" << stu_addr << endl;
long *stu_virtable = (long*) *(stu_addr + 0);
cout << "子类student虚函数表地址:" << stu_virtable << endl;
/*测试person同类*/
cout << endl;
cout << "---------------------------" << endl;
cout << "同类person对象测试" << endl;
cout << "---------------------------" << endl;
person p4;
long *p4_addr = (long*) &p4;
cout << "同类person对象地址:" << p4_addr << endl;
long *p4_virtable = (long*) *(p4_addr + 0);
cout << "同类person虚函数表地址:" << p4_virtable << endl;
return 0;
}
// g++ -Wall -pedantic test.cpp -g
输出
基类对象地址0x7ffe86a50d30
虚函数表地址:0x4012d0
person_func:
work_addr:0x400932
person_work
eat_addr:0x40095c
person_eat
money_addr:0x4008de
person_money
---------------------------
覆盖虚函数子类teacher测试
---------------------------
子类teacher对象地址0x7ffe86a50d20
子类teacher虚函数表地址0x401290
teacher func
teacher_work_addr:0x400986
teacher_work
teacher_eat_addr:0x40095c
person_eat
teacher_money_addr:0x4008de
person_money
---------------------------
未覆盖虚函数子类student测试
---------------------------
子类student对象地址:0x7ffe86a50d10
子类student虚函数表地址:0x401250
---------------------------
同类person对象测试
---------------------------
同类person对象地址:0x7ffe86a50d00
同类person虚函数表地址:0x4012d0
修改分析
1、上述程序使用long*
替代int*
,这是因为一般long
type length等于Word length等于pointer length
2、上述程序没有使用size_t
的原因是,intentional programming,上述程序所要表达的意图是arithmetic,显然long是更加符合arithmetic的
补充图

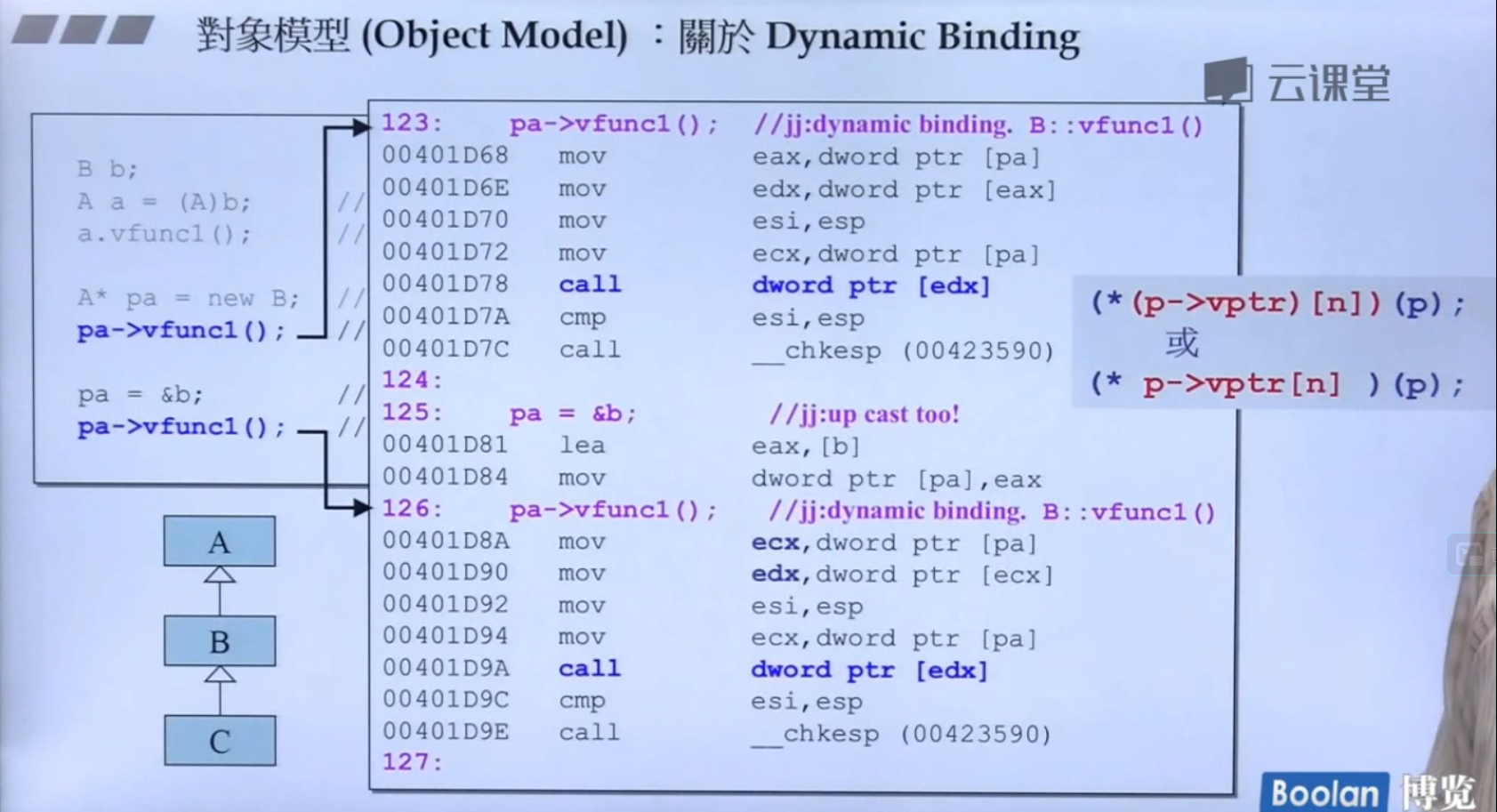

侯捷老师的一张图,比较直观。
