CppCon 2015 Declarative Control Flow

Abstract

Presentation Slides, PDFs, Source Code and other presenter materials are available at: https://github.com/cppcon/cppcon2015

Getting exception handling right is a perennial(永久的、持续不断的) problem in C++ that has eluded(逃避的) systematization(系统化).

NOTE: 这段话的意思是: 在C++中，没有对exception handling

— Not for much longer. New language and library developments make it possible to handle exceptions in a declarative manner, leading to drastic(强烈的) code simplification. This talk discusses an alternative approach to handling exceptional flow that eliminates the need for small ancillary(辅助的) RAII classes, try/catch statements that rethrow, and other cleanup mechanisms. The popular Scope Guard idiom gets a spectacular(壮观的、引人入胜的) generalization. Statements specify in a declarative manner actions to be taken if the current scope is left normally or via an exception. The resulting code is simpler, smaller, and easier to maintain.

— Andrei Alexandrescu is a researcher, software engineer, and author. He wrote three best-selling books on programming (Modern C++ Design, C++ Coding Standards, and The D Programming Language) and numerous articles and papers on wide-ranging topics from programming to language design to Machine Learning to Natural Language Processing. Andrei holds a PhD in Computer Science from the University of Washington and a BSc in Electrical Engineering from University "Politehnica" Bucharest. He works as a Research Scientist for Facebook.Website: http://erdani.comTwitter handle: @incomputable — Videos Filmed & Edited by Bash Films: http://www.BashFilms.com

Slide

Challenge

1、Define a transactional file copy function

2、Either succeed

3、. . . or fail successfully

Cheat Sheet

From boost::filesystem:

void copy_file(const path& from, const path& to);

Implementation

void copy_file_transact(const path &from, const path &to)
{
    bf::path t = to.native() + ".deleteme";//temporary
    try
    {
        bf::copy_file(from, t);
        bf::rename(t, to);
    } catch (...)
    {
        ::remove(t.c_str());
        throw;
    }
}

NOTE: 上述实现方式是比较考究的，它能让实现strong exception safety，它比较类似于copy-and-swap: 先构造temporary，成功后，再删除temporary。

上述实现，其实存在这样的一种情况: 如果OS中to文件，则overwrite。

要么成功，要么回滚到原状态；

Meh

1、We now have explicit control flow

Not dedicated to core logic

2、Of 8 lines, only 4 do “work”

3、Y u play baseball?

Composition

NOTE: "Composition"的含义使用前面的copy_file_transact来实现move_file_transact

1、Define a transactional file move function

2、Either succeed

3、. . . or fail successfully

Implementation

void move_file_transact(const path &from, const path &to)
{
    try
    {
        bf::copy_file_transact(from, to);
        bf::remove(from);
    } catch (...)
    {
        ::remove(to.c_str());
        throw;
    }
}

Ehm

1、Same issues 2、Also, functions that throw don’t compose all that well 3、Oops, there’s a bug

NOTE: bug 是 bf::copy_file_transact(from, to); 抛出exception，在 catch 中，::remove(to.c_str());将to文件给错误地删除了。

Implementation (fixed)

void move_file_transact(const path &from, const path &to)
{
    bf::copy_file_transact(from, to);
    try
    {
        bf::remove(from);
    } catch (...)
    {
        ::remove(to.c_str());
        throw;
    }
}

NOTE:

如果bf::copy_file_transact(from, to);成功，则说明copy成功了，如果跑出exception，后续过程不会执行；

如果bf::remove(from);跑出exception，则说明删除from失败，则需要将之前的copy undo。

What Tools Do We Have?

1、RAII tenuous

2、ScopeGuard tenuous

3、Composition only makes it worse

◦ Series/nesting of try/catch ◦ Urgh

4、Meantime in CppCoreStandards:

“E.18: Minimize the use of explicit try/catch”

Suddenly. . .

goto fail; doesn’t look that bad anymore, eh?

Explicit Control Flow = Fail

Declarative Programming

1、Focus on stating needed accomplishments

NOTE: 专注于阐述需要完成的事情；即: 描述目标，而不关注如何实现；"accomplishment"的表面意思是: 完成，引申义为: 目标；

2、As opposed to describing steps

NOTE: 无需说明如何实现

3、Control flow typically minimal/absent

NOTE: 在 Declarative Programming 中，通常不需要Control flow。

4、Execution is implicit, not explicit

5、Examples: SQL, regex, make, config,. . .

6、Let’s take a page from their book!

Surprising Insight

1、Consider bona fide RAII with destructors:

States needed accomplishment?

NOTE: RAII 能够实现

Implicit execution?

NOTE: RAII 能够实现

Control flow minimal?

NOTE: RAII 能够实现

2、RAII is declarative programming!

NOTE: 这是结论，即"RAII is declarative programming!"

More RAII: ScopeGuard

1、Also declarative

2、Less syntactic baggage than cdtors

3、Flow is “automated” through placement

4、Macro SCOPE_EXIT raises it to pseudo-statement status

Pseudo-Statement (old hat!)

#include <utility>
namespace detail
{
enum class ScopeGuardOnExit
{
};
template<typename Fun>
ScopeGuard<Fun> operator+(ScopeGuardOnExit, Fun &&fn)
{
    return ScopeGuard<Fun>(std::forward<Fun>(fn));
}
}
#define SCOPE_EXIT \
auto ANONYMOUS_VARIABLE(SCOPE_EXIT_STATE) \
= ::detail::ScopeGuardOnExit() + [&]()

#define CONCATENATE_IMPL(s1, s2) s1##s2

#define CONCATENATE(s1, s2) CONCATENATE_IMPL(s1, s2)

#ifdef __COUNTER__
#define ANONYMOUS_VARIABLE(str) \
CONCATENATE(str, __COUNTER__)
#else
#define ANONYMOUS_VARIABLE(str) \
CONCATENATE(str, __LINE__)
#endif

Use (old hat!)

void fun()
{
    char name[] = "/tmp/deleteme.XXXXXX";
    auto fd = mkstemp(name);
    SCOPE_EXIT{ fclose(fd); unlink(name);};
    auto buf = malloc(1024 * 1024);
    SCOPE_EXIT {    free(buf);};
//... use fd and buf ...
}

Painfully Close to Ideal!

NOTE: 非常接近理想

One more for completeness

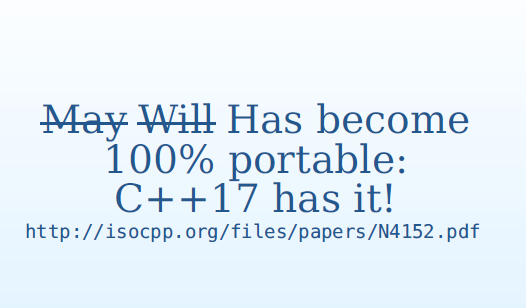

N4152

“When in doubt, replace bool with int”

namespace std
{
bool uncaught_exception(); // old and bad
int uncaught_exceptions(); // new and rad
}

Using `std::uncaught_exceptions`

#include <exception>

class UncaughtExceptionCounter
{
    int getUncaughtExceptionCount() noexcept;
    /**
     * 异常个数
     */
    int exceptionCount_;
public:
    UncaughtExceptionCounter() :
                    exceptionCount_(std::uncaught_exceptions())
    {
    }
    /**
     * @brief 是否有新异常
     *
     * @return
     */
    bool newUncaughtException() noexcept
    {
        return std::uncaught_exceptions() > exceptionCount_;
    }
};

NOTE: 获得未捕获的异常的个数

Layering

#include <utility>
/**
 * @brief 新exception的scope guard
 *
 * @tparam FunctionType
 * @tparam executeOnException
 */
template<typename FunctionType, bool executeOnException>
class ScopeGuardForNewException
{
    FunctionType function_;
    UncaughtExceptionCounter ec_;
public:
    explicit ScopeGuardForNewException(const FunctionType &fn) :
                    function_(fn)
    {
    }
    explicit ScopeGuardForNewException(FunctionType &&fn) :
                    function_(std::move(fn))
    {
    }
    ~ScopeGuardForNewException() noexcept (executeOnException)
    {
        if (executeOnException == ec_.isNewUncaughtException())
        {
            function_();
        }
    }
};

Icing

#include<type_traits>
#include<utility>
enum class ScopeGuardOnFail
{
};

template<typename FunctionType>
ScopeGuardForNewException<typename std::decay<FunctionType>::type, true> operator+(detail::ScopeGuardOnFail, FunctionType &&fn)
{
    return ScopeGuardForNewException<typename std::decay<FunctionType>::type, true>(std::forward<FunctionType>(fn));
}

Cake Candles

#define SCOPE_FAIL \
auto ANONYMOUS_VARIABLE(SCOPE_FAIL_STATE) \
= ::detail::ScopeGuardOnFail() + [&]() noexcept

Transactional Copy

void copy_file_transact(const path &from, const path &to)
{
    bf::path t = to.native() + ".deleteme";
    SCOPE_FAIL{ ::remove(t.c_str());};
    bf::copy_file(from, t);
    bf::rename(t, to);
}

Transactional Move

void move_file_transact(const path &from, const path &to)
{
    bf::copy_file_transact(from, to);
    SCOPE_FAIL{ ::remove(to.c_str());};
    bf::remove(from);
}

Please Note

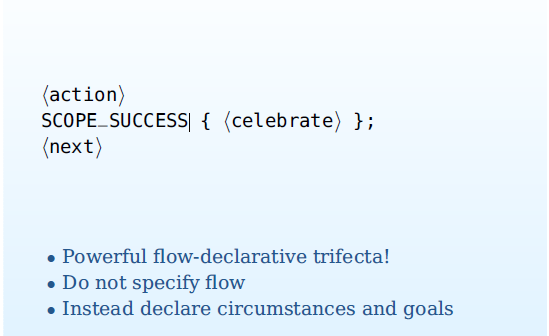

Only SCOPE_SUCCESS may throw

Postconditions

#include <string>
int string2int(const std::string &s)
{
    int r;
    SCOPE_SUCCESS{assert(int2string(r) == s);};
    // ...
    return r;
}

Changing of the Guard

void process(char *const buf, size_t len)
{
    if (!len)
        return;
    const auto save = buf[len - 1];
    buf[len - 1] = 255;
    SCOPE_EXIT{ buf[len - 1] = save;};
    for (auto p = buf;;)
    switch (auto c = *p++)
    {
        // ...
    }
}

Scoped Changes

bool g_sweeping;
void sweep()
{
    g_sweeping = true;
    SCOPE_EXIT{ g_sweeping = false;};
    auto r = getRoot();
    assert(r);
    r->sweepAll();
}

No RAII Type? No Problem!

void fileTransact(int fd)
{
    enforce(flock(fd, LOCK_EX) == 0);
    SCOPE_EXIT
    {
        enforce(flock(fd, LOCK_UN) == 0);
    };
    // ...
}

No need to add a type for occasional RAII idioms

Remarks

1、All examples taken from production code

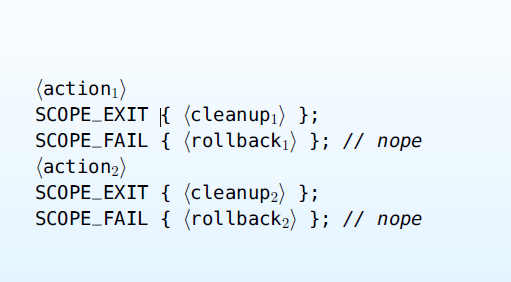

2、Declarative focus

◦ Declare contingency(偶发事件) actions by context

3、SCOPE_* more frequent than try in new code

4、The latter remains in use for actual handling

4、Flattened flow

5、 Order still matters

Only detail left: std::uncaught_exceptions()

Credits

1、Evgeny Panasyuk: compiler-specific bits

github.com/panaseleus/stack_unwinding

2、Daniel Marinescu: folly implementation

github.com/facebook/folly

3、Herb: got it in C++17

4、Michael: Implemented it in Visual Studio 2015

5、Ville Voutilainen implemented it for gcc7
