A Quick Tour of the Boost Graph Library

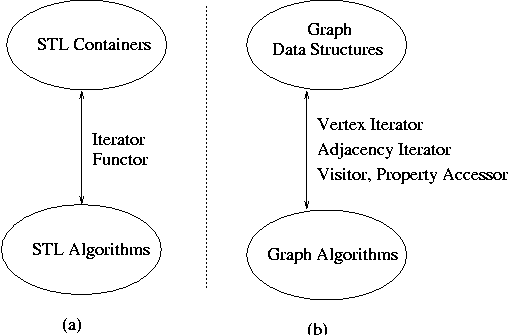

Constructing a Graph
The adjacency_list class provides a generalized version of the classic "adjacency list" data structure.
The first two template arguments (vecS, vecS) determine the data structure used to represent the out-edges for each vertex in the graph and the data structure used to represent the graph's vertex set (see section Choosing the Edgelist and VertexList for information about the tradeoffs of the different data structures).
The third argument, bidirectionalS, selects a directed graph that provides access to both out and in-edges. The other options for the third argument are directedS which selects a directed graph with only out-edges, and undirectedS which selects an undirected graph.
NOTE:
bidirectionalS、directedS、undirectedS都是前三个template parameter的argument。NOTE:
Accessing the Vertex Set
NOTE:
Note that different graph classes can have different associated vertex iterator types, which is why we need the graph_traits class.
NOTE: trait提供了一层抽象。
Accessing the Edge Set
NOTE:
source()
target()
The Adjacency Structure
In the next few examples we will explore the adjacency structure of the graph from the point of view of a particular vertex. We will look at the vertices' in-edges, out-edges, and its adjacent vertices.
NOTE: 前面两节：Accessing the Vertex Set、Accessing the Edge Set都是着眼于整个graph，即对整个graph进行操作，而本节开始，着眼于graph中的一个vertex，结合各种graph algorithm可知，各种algorithm都是基于vertex的。最最常见的便是获得一个vertex的adjacent vertexes。
We will encapsulate this in an "exercise vertex" function, and apply it to each vertex in the graph. To demonstrate the STL-interoperability of BGL, we will use the STL for_each() function to iterate through the vertices and apply the function.
//...
int main(int,char*[])
{
//...
std::for_each(vertices(g).first, vertices(g).second,
exercise_vertex<Graph>(g));
return 0;
}
We use a functor for exercise_vertex instead of just a function because the graph object will be needed when we access information about each vertex; using a functor gives us a place to keep a reference to the graph object during the execution of the std::for_each(). Also we template the functor on the graph type so that it is reusable with different graph classes. Here is the start of the exercise_vertex functor:
NOTE: functor VS function
template <class Graph> struct exercise_vertex {
exercise_vertex(Graph& g_) : g(g_) {}
//...
Graph& g;
};
Vertex Descriptors
NOTE: 在boost New Iterator Concepts中，对它进行了介绍。
The first thing we need to know in order to write the operator() method of the functor is the type for the vertex objects of the graph. The vertex type will be the parameter to the operator() method. To be precise, we do not deal with actual vertex objects, but rather with vertex descriptors. Many graph representations (such as adjacency lists) do not store actual vertex objects, while others do (e.g., pointer-linked graphs). This difference is hidden underneath the "black-box" of the vertex descriptor object. The vertex descriptor is something provided by each graph type that can be used to access information about the graph via the out_edges(), in_edges(), adjacent_vertices(), and property map functions that are described in the following sections.
NOTE: vertex descriptor是对vertex抽象描述，或者说它是一种协议。
The vertex_descriptor type is obtained through the graph_traits class. The typename keyword used below is necessary because the type on the left hand side of the scope :: operator (the graph_traits<Graph> type) is dependent on a template parameter (the Graph type). Here is how we define the functor's apply method:
template <class Graph> struct exercise_vertex {
//...
typedef typename graph_traits<Graph>
::vertex_descriptor Vertex;
void operator()(const Vertex& v) const
{
//...
}
//...
};
Out-Edges, In-Edges, and Edge Descriptors
The out-edges of a vertex are accessed with the out_edges() function of the IncidenceGraph interface. The out_edges() function takes two arguments: the first argument is the vertex and the second is the graph object. The function returns a pair of iterators which provide access to all of the out-edges of a vertex (similar to how the vertices() function returned a pair of iterators). The iterators are called out-edge iterators and dereferencing one of these iterators gives an edge descriptor object. An edge descriptor plays the same kind of role as the vertex descriptor object, it is a "black box" provided by the graph type. The following code snippet prints the source-target pairs for each out-edge of vertex v.
template <class Graph> struct exercise_vertex {
//...
void operator()(const Vertex& v) const
{
typedef graph_traits<Graph> GraphTraits;
typename property_map<Graph, vertex_index_t>::type
index = get(vertex_index, g);
std::cout << "out-edges: ";
typename GraphTraits::out_edge_iterator out_i, out_end;
typename GraphTraits::edge_descriptor e;
for (boost::tie(out_i, out_end) = out_edges(v, g);
out_i != out_end; ++out_i) {
e = *out_i;
Vertex src = source(e, g), targ = target(e, g);
std::cout << "(" << index[src] << ","
<< index[targ] << ") ";
}
std::cout << std::endl;
//...
}
//...
};
The in_edges() function of the BidirectionalGraph interface provides access to all the in-edges of a vertex through in-edge iterators. The in_edges() function is only available for the adjacency_list if bidirectionalS is supplied for the Directed template parameter. There is an extra cost in space when bidirectionalS is specified instead of directedS.
template <class Graph> struct exercise_vertex {
//...
void operator()(const Vertex& v) const
{
//...
std::cout << "in-edges: ";
typedef typename graph_traits<Graph> GraphTraits;
typename GraphTraits::in_edge_iterator in_i, in_end;
for (boost::tie(in_i, in_end) = in_edges(v,g);
in_i != in_end; ++in_i) {
e = *in_i;
Vertex src = source(e, g), targ = target(e, g);
std::cout << "(" << index[src] << "," << index[targ] << ") ";
}
std::cout << std::endl;
//...
}
//...
};
Adding Some Color to your Graph
NOTE: internally stored property and externally stored property
BGL uses a uniform mechanism to access both kinds of properties inside its graph algorithms called the property map interface, described in Section Property Map Concepts. In addition, the PropertyGraph concept defines the interface for obtaining a property map object for an internally stored property.
The BGL adjacency_list class allows users to specify internally stored properties through plug-in template parameters of the graph class. How to do this is discussed in detail in Section Internal Properties. Externally stored properties can be created in many different ways, although they are ultimately passed as separate arguments to the graph algorithms. One straightforward way to store properties is to create an array indexed by vertex or edge index.
In the adjacency_list with vecS（vector） specified for the VertexList template parameter, vertices are automatically assigned indices, which can be accessed via the property map for the vertex_index_t. Edges are not automatically assigned indices. However the property mechanism can be used to attach indices to the edges which can be used to index into other externally stored properties.
NOTE: 关于
vertex_index_t，参见Usingadjacency_list#Internal Properties章节。
In the following example, we construct a graph and apply dijkstra_shortest_paths(). The complete source code for the example is in examples/dijkstra-example.cpp. Dijkstra's algorithm computes the shortest distance from the starting vertex to every other vertex in the graph.
Dijkstra's algorithm requires that a weight property is associated with each edge and a distance property with each vertex. Here we use an internal property for the weight and an external property for the distance. For the weight property we use the property class and specify int as the type used to represent weight values and edge_weight_t for the property tag (which is one of the BGL predefined property tags). The weight property is then used as a template argument for adjacency_list.
NOTE: distance property所指的是source vertex到该vertex的distance，这是Dijkstar算法的最终输出。
The listS and vecS types are selectors that determine the data structure used inside the adjacency_list (see Section Choosing the Edgelist and VertexList). The directedS type specifies that the graph should be directed (versus undirected). The following code shows the specification of the graph type and then the initialization of the graph. The edges and weights are passed to the graph constructor in the form of iterators (a pointer qualifies as a RandomAccessIterator).
typedef adjacency_list<listS, vecS, directedS,
no_property, property<edge_weight_t, int> > Graph;
typedef graph_traits<Graph>::vertex_descriptor Vertex;
typedef std::pair<int,int> E;
const int num_nodes = 5;
E edges[] = { E(0,2),
E(1,1), E(1,3), E(1,4),
E(2,1), E(2,3),
E(3,4),
E(4,0), E(4,1) };
int weights[] = { 1, 2, 1, 2, 7, 3, 1, 1, 1};
Graph G(edges, edges + sizeof(edges) / sizeof(E), weights, num_nodes);
