New Iterator Concepts

Motivation

The standard iterator categories and requirements are flawed because they use a single hierarchy of concepts to address two orthogonal issues: iterator traversal and value access.

NOTE: 关于上面这一段中的orthogonal ，参见维基百科Orthogonality (programming)

As a result, many algorithms with requirements expressed in terms of the iterator categories are too strict. Also, many real-world iterators can not be accurately categorized. A proxy-based iterator with random-access traversal, for example, may only legally have a category of “input iterator”, so generic algorithms are unable to take advantage of its random-access capabilities. The current iterator concept hierarchy is geared towards iterator traversal (hence the category names), while requirements that address value access sneak in at various places. The following table gives a summary of the current value access requirements in the iterator categories.

NOTE: 对“A proxy-based iterator with random-access traversal, for example, may only legally have a category of “input iterator”, so generic algorithms are unable to take advantage of its random-access capabilities.”的理解是需要结合具体的例子的，否则是非常难以理解这句话的含义是什么。一个典型的例子就是vector<bool>，在Why is vector not a STL container?中就对此进行了说明：

For space-optimization reasons, the C++ standard (as far back as C++98) explicitly calls out vector<bool> as a special standard container where each bool uses only one bit of space rather than one byte as a normal bool would (implementing a kind of "dynamic bitset").

In this case, since you can't take the address of a bit within a byte, things such as operator[] can't return a bool& but instead return a proxy object that allows to manipulate the particular bit in question. Since this proxy object is not a bool&, you can't assign its address to a bool* like you could with the result of such an operator call on a "normal" container. In turn this means that bool *pb =&v[0]; isn't valid code.

NOTE: 最后一段话的含义是：当前的iterator concept hierarchy主要表达的是iterator traversal的含义，而关于**value access**的内容，它难以表达。

Value Access Requirements in Existing Iterator Categories
Output Iterator *i = a
Input Iterator *i is convertible to T
Forward Iterator *i is T& (or const T& once issue 200 is resolved)
Random Access Iterator i[n] is convertible to T (also i[n] = t is required for mutable iterators once issue 299 is resolved)

Because iterator traversal and value access are mixed together in a single hierarchy, many useful iterators can not be appropriately categorized. For example, vector<bool>::iterator is almost a random access iterator, but the return type is not bool& (see issue 96 and Herb Sutter’s paper J16/990008 = WG21 N1185). Therefore, the iterators of vector<bool> only meet the requirements of input iterator and output iterator. This is so nonintuitive that the C++ standard contradicts itself on this point. In paragraph 23.2.4/1 it says that a vector is a sequence that supports random access iterators.

NOTE:

关于random access iterator的named requirement，参见C++ named requirements: LegacyRandomAccessIterator，在其中可以看到，对于random access iterator，它要求：

Expression Return type
i[n] convertible to reference

关于vector<bool>::iterator不满足random access iterator的讨论，在Why is vector not a STL container?中给出了详细的说明，显然对于vector<bool>，它并不满足上述的requirement。

Another difficult-to-categorize iterator is the transform iterator, an adaptor which applies a unary function object to the dereferenced value of the some underlying iterator (see transform iterator). For unary functions such as times, the return type of operator* clearly needs to be the result_type of the function object, which is typically not a reference. Because random access iterators are required to return lvalues from operator*, if you wrap int* with a transform iterator, you do not get a random access iterator as might be expected, but an input iterator.

NOTE: transform iterator是一个adaptor，所以它有一个underlying iterator

A third example is found in the vertex and edge iterators of the Boost Graph Library. These iterators return vertex and edge descriptors, which are lightweight handles created on-the-fly. They must be returned by-value. As a result, their current standard iterator category is input_iterator_tag, which means that, strictly speaking, you could not use these iterators with algorithms like min_element(). As a temporary solution, the concept Multi-Pass Input Iterator was introduced to describe the vertex and edge descriptors, but as the design notes for the concept suggest, a better solution is needed.

In short, there are many useful iterators that do not fit into the current standard iterator categories.

As a result, the following bad things happen:

  • Iterators are often mis-categorized.
  • Algorithm requirements are more strict than necessary, because they cannot separate the need for random access or bidirectional traversal from the need for a true reference return type.

Impact on the Standard

NOTE: 最好先阅读Design章节，再来阅读本节。

Possible (but not proposed) Changes to the Working Paper

Changes to Algorithm Requirements

For the next working paper (but not for TR1), the committee should consider the following changes to the type requirements of algorithms. These changes are phrased as textual substitutions, listing the algorithms to which each textual substitution applies.

Forward Iterator -> Forward Traversal Iterator and Readable Iterator

find_end, adjacent_find, search, search_n, rotate_copy, lower_bound, upper_bound, equal_range, binary_search, min_element, max_element

Deprecations

For the next working paper (but not for TR1), the committee should consider deprecating the old iterator tags, and std::iterator traits, since it will be superceded by individual traits metafunctions.

vector<bool>

For the next working paper (but not for TR1), the committee should consider reclassifying vector<bool>::iterator as a Random Access Traversal Iterator and Readable Iterator and Writable Iterator.

Design

The iterator requirements are to be separated into two groups. One set of concepts handles the syntax and semantics of value access:

  • Readable Iterator
  • Writable Iterator
  • Swappable Iterator
  • Lvalue Iterator

The access concepts describe requirements related to operator* and operator->, including the value_type, reference, and pointer associated types.

The other set of concepts handles traversal:

  • Incrementable Iterator
  • Single Pass Iterator
  • Forward Traversal Iterator
  • Bidirectional Traversal Iterator
  • Random Access Traversal Iterator

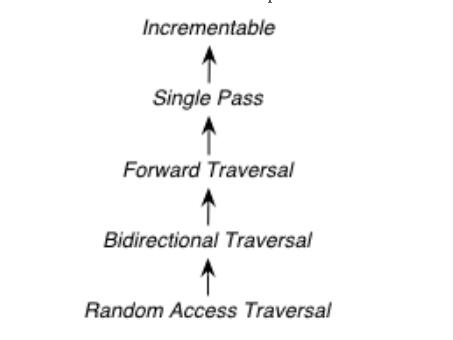

The refinement relationships for the traversal concepts are in the following diagram.

The reason for the fine grain slicing of the concepts into the Incrementable and Single Pass is to provide concepts that are exact matches with the original input and output iterator requirements.

NOTE: incremental 和 single pass之间是什么区别？

This proposal also includes a concept for specifying when an iterator is interoperable with another iterator, in the sense that int* is interoperable with int const*.

  • Interoperable Iterators

A difficult design decision concerned the operator[]. The direct approach for specifying operator[] would have a return type of reference; the same as operator*. However, going in this direction would mean that an iterator satisfying the old Random Access Iterator requirements would not necessarily be a model of Readable or Writable Lvalue Iterator. Instead we have chosen a design that matches the preferred resolution of issue 299: operator[] is only required to return something convertible to the value_type (for a Readable Iterator), and is required to support assignment i[n] = t (for a Writable Iterator).
